11. A rod AB carries three loads of 30 N, 70 N and 100 N at distances of 20 mm, 90 mm and 150 mm respectively from A. Neglecting the weight of the rod, the point at which the rod will balance is
12. The member forces in a statically in determinate truss
13. If v and $$\omega $$ are linear and angular velocities, the centripetal acceleration of a moving body along the circular path of radius r, will be
14. To attain the synchronous orbit, the launch of a satellite, is done from a place
15. The rotational velocity of a satellite is increased by 450 m per second if its launch is done from equator
16. When a body in equilibrium undergoes an infinitely small displacement, work imagined to be done, is known as
17. A ball which is thrown upwards, returns to the ground describing a parabolic path during its flight

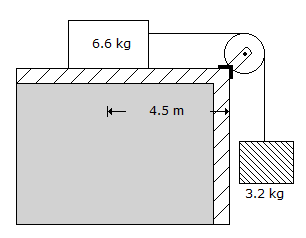

18. A body A of mass 6.6 kg which is lying on a horizontal platform 4.5 m from its edge is connected to the end of a light string whose other end is supporting a body of mass 3.2 kg as shown in below figure. If the friction between the platform and the body A is $$\frac{1}{3}$$, the acceleration is
19. A cylinder will slip on an inclined plane of inclination angle $$\theta $$ if the coefficient of static friction between plane and cylinder is
20. The following factor affects the orbit of a satellite up to an altitude of 720 km from the earth's surface
