41.
For the junction transistor, which of the following relation is true?

43.
The load impedance ZL of common emitter amplifier has R and L in series. The phase difference between output and input will be

44.
Match List-I with List-II and select the correct answer using the options given below the lists:
List-I (Name of the circuit) List-II (Characteristics of the circuit)
a. Darlington Amplifier 1. A circuit using pnp and npn transistors used in power amplifier.
b. Common base Amplifier 2. A Common-source Amplifier driving a common gate amplifier.
c. Complementary Symmetry Amplifier 3. A Circuit with overall voltage gain close to 1 and very large input impedance.
d. Cascode Amplifier 4. A Circuit with low input impedance mainly used in high frequency applications.

45.
The overall bandwidth of two identical voltage amplifiers connected in cascade will be:

46.

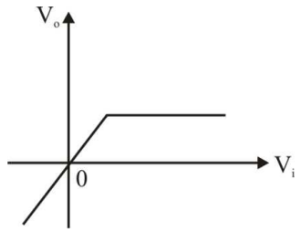

The voltage transfer characteristics as shown in the figure will relate to a
1. Voltage regulator
2. Half-wave rectifier
3. Full-wave rectifier
Which of the above is/are correct?
Analog Electronics mcq question image

47.
A 5 mV, 1 kHz sinusoidal signal is applied to the input of an op-amp integrator for which R = 100 kΩ and C = 1 µF. the output voltage is:

48.

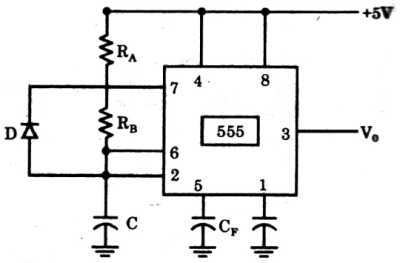

The function of the diode D in the timer circuit shown below is to
Analog Electronics mcq question image

49.
An op-amp is used as a zero-crossing detector. If the maximum output voltage is ±15 Volt p-p and the slew rate is 10 V/µsec, then the maximum frequency will be

50.
A voltage VG is applied across a MOS capacitor with metal gate and p-type silicon substrate at T = 300 K. The inversion carrier density (in number of carriers per unit area) for VG = 0.8 V is 2 × 1011 cm-2. For VG = 1.3 V, the inversion carrier density is 4 × 1011 cm-2. What is the value of the inversion carrier density for VG = 1.8 V?
