51. The negative feedback in an amplifier leads to which one of the following?
52. The equivalent dc output voltage of a half wave rectifier is . . . . . . . . the equivalent dc output voltage of a full wave rectifier.

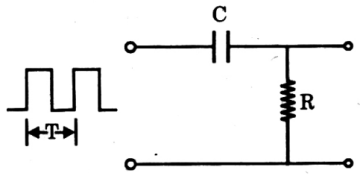

53. For the circuit given in the figure, consider the following statements:
1. The output VO will consist of a positive and a negative spike if RC << T.
2. The output VO will be similar to Vi if RC >> T.
3. The output will have a higher rise time if RC is made progressively smaller than T.
Of these statements:
1. The output VO will consist of a positive and a negative spike if RC << T.
2. The output VO will be similar to Vi if RC >> T.
3. The output will have a higher rise time if RC is made progressively smaller than T.
Of these statements:
54. Cascode amplifier when compared with a simple common-emitter amplifier provide which of the following?

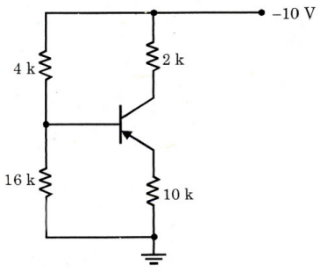

55. In the circuit shown in the given figure, the approximate voltage at the transistor
56. Which is not considered as a linear voltage regulator?
57. A Schmitt trigger is a digital circuit that produce

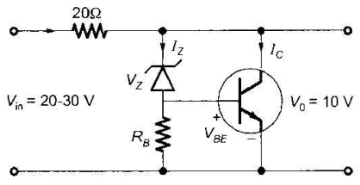

58. The transistor shunt regulator shown in the figure has a regulated output voltage of 10 V, when the input varies from 20 V to 30 V. The relevant parameters for the zener diode and the transistor are: VZ = 9.5, VBE = 0.5 V, β = 99. Neglect the current through RB. Then the maximum power dissipated in the zener diode (PZ) and the transistor (PT) are
59. The following configuration is an example of positive feedback system:
60. Barkhausen criterion is related to
