91.

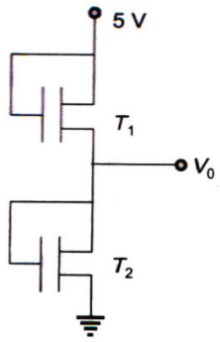

Both transistors T1 and T2 shown in the figure, have a threshold voltage of 1 Volts. The device parameters K1 and K2 of T1 and T2 are respectively, 36 µA/V2 and 9 µA/V2. The output voltage V0 is
Digital Electronics mcq question image

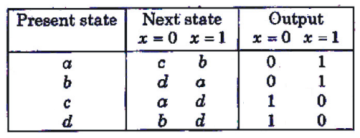

93.
The expression for the truth table given below in POS form is given by:
A     B C F
0     0 0 1
0     0 1 0
0     1 0 1
0     1 1 1
1     0 0 1
1     0 1 1
1     1 0 1
1     1 1 0

94.
Consider the following statements regarding configuration of TTL devices:
1. The output impedance of totem pole transistor is high.
2. Open collector output devices have low switching speed.
3. Power consumption of Schottky devices is high.
4. Tri-state output devices have high switching speed.
Of these statements:

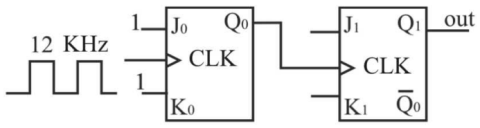

96.
Consider the Karnaugh map given below : The function represented by this map can be simplified to the minimal form as
Digital Electronics mcq question image

97.
Which one of the following Boolean expressions is NOT correct?
