What is the 2's complement of 01101?

A. 10010

B. 10011

C. 1100

D. 1001

Answer & Solution Discuss in Board Save for Later

52.
Which among the following ROMs exhibit/s the necessity of eliminating the PROM from the circuit?

A. EPROM

B. EEPROM

C. Both A and B

D. None of the above

Answer & Solution Discuss in Board Save for Later

53.
Simplified expression of $${\text{Y}} = \left( {{\text{A}} + {\text{B}}} \right)\left( {{\text{A}} + \overline {\text{A}} \overline {\text{B}} } \right){\text{C}} + \overline {\text{A}} \left( {{\text{B}} + \overline {\text{C}} } \right) + \overline {\text{A}} {\text{B}} + {\text{ABC}}$$ is

A. $${\text{Y}} = {\text{C}}\left( {{\text{A + B}}} \right) + \overline {\text{A}} \left( {{\text{B}} + \overline {\text{C}} } \right)$$

B. $${\text{Y}} = {\text{C}}\left( {\overline {\text{A}} + \overline {\text{B}} } \right) + {\text{A}}\left( {\overline {\text{B}} + {\text{C}}} \right)$$

C. $${\text{Y}} = {\text{A}}\left( {{\text{B}} + {\text{C}}} \right) + {\text{B}}\left( {\overline {\text{A}} + \overline {\text{C}} } \right)$$

D. $${\text{Y}} = {\text{C}}\left( {\overline {\text{A}} + {\text{B}}} \right) + {\text{B}}\left( {{\text{A}} + \overline {\text{C}} } \right)$$

Answer & Solution Discuss in Board Save for Later

54.

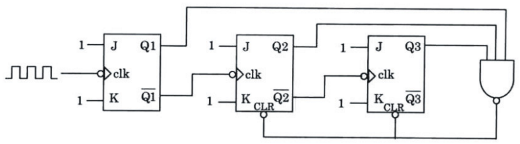

A counter is designed using J-K Flip-Flop as shown in figure Define its count sequence

A. 000, 001, 010, 011, 100 & repeats

B. 100, 011, 010, 001, 000 & repeat

C. 010, 011, 100, 000, 001 & repeats

D. 101, 110, 111, 000, 001, 010, 011, 100 repeats

Answer & Solution Discuss in Board Save for Later

55.
When signed number are used in binary arithmetic, then which one of the following notations would have unique representation for zero?

A. Sign-magnitude

B. 1's complement

C. 2's complement

D. 9's complement

Answer & Solution Discuss in Board Save for Later

56.
A S-R flip flop with a clock input can be converted to a 'D' flip flop using

A. Two inverters

B. The flip flop outputs (Q & $$\overline {\text{Q}} $$) connected to its inputs

C. One inverter

D. Not possible

Answer & Solution Discuss in Board Save for Later

57.
A 2 × 2 ROM array is built with the help of diodes as shown in the circuit below. Here W₀ and W₁ are signals that select the word lines and B₀ and B₁ are signals that are output of the sense amps based on the stored data corresponding to the bit lines during the read operation.
During the read operation, the selected word line goes high and the other word line is in a high impedance state. As per the implementation shown in the circuit diagram above, what are the bits corresponding to D_ij (where i = 0 or 1 and j = 0 or 1) stored in the ROM?

A. \[\left[ \begin{gathered} 1\,\,\,\,\,0 \hfill \\ 0\,\,\,\,\,1 \hfill \\ \end{gathered} \right]\]

B. \[\left[ \begin{gathered} 0\,\,\,\,\,1 \hfill \\ 1\,\,\,\,\,0 \hfill \\ \end{gathered} \right]\]

C. \[\left[ \begin{gathered} 1\,\,\,\,\,0 \hfill \\ 1\,\,\,\,\,0 \hfill \\ \end{gathered} \right]\]

D. \[\left[ \begin{gathered} 1\,\,\,\,\,1 \hfill \\ 0\,\,\,\,\,0 \hfill \\ \end{gathered} \right]\]

Answer & Solution Discuss in Board Save for Later

58.
Boolean expression $$\overline {{\text{A}} + \overline {\text{B}} + {\text{C}}} + \overline {\overline {\text{A}} + \overline {\text{B}} + {\text{C}}} + \overline {{\text{A}} + \overline {\text{B}} + \overline {\text{C}} } + {\text{ABC}}$$ reduces to

A. A

B. B

C. C

D. A + B + C

Answer & Solution Discuss in Board Save for Later

59.

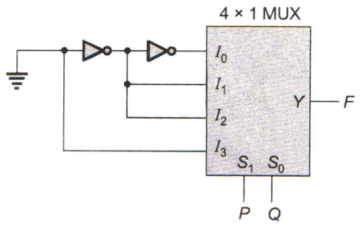

The logic function implemented by the circuit below is (ground implies a logic '0')

A. F = AND(P, Q)

B. F = OR(P, Q)

C. F = XNOR(P, Q)

D. F = XOR(P, Q)

Answer & Solution Discuss in Board Save for Later

60.
Simplification of the function $${\text{f}} = \overline {{\text{AB}}} + \overline {\overline {\text{A}} + {\text{B}}} $$ is:

A. $${\text{AB}}$$

B. $${\text{A}} + {\text{B}}$$

C. $$\overline {\text{A}} \overline {\text{B}} $$

D. $$\overline {{\text{AB}}} $$

Answer & Solution Discuss in Board Save for Later
