Solid State Physics MCQs Question and Answer in Engineering Physics Page-7 section-1

61.

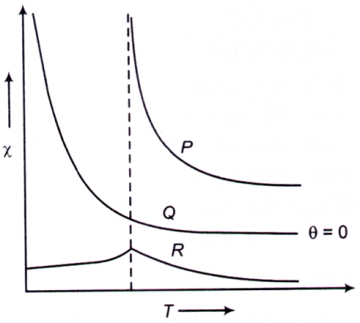

The dependences of the magnetic susceptibility $$\left( \chi \right)$$ of a material with temperature (T) can be represented by $$\chi \propto \frac{1}{{T - \theta }},$$ where θ is the Curie-Weiss temperature. The plot of magnetic susceptibility versus temperature is sketched in the figure, as curves P, Q and R with curve Q having θ = 0. Which one of the following statements is correct?

A. Curve R represents a paramagnet and Q a ferromagnetic field

B. Curve Q represents a ferromagnet and P an antiferromagnet

C. Curve R represents an antiferromagnet and Q a paramagnet

D. Curve R represents an antiferromagnet and Q a ferromagnet

Answer & Solution Discuss in Board Save for Later

62.
In a crystal of N primitive cells, each cell contains two monovalent atoms. The highest occupied energy band of the crystal is

A. one-fourth filled

B. one-third filled

C. half filled

D. completely filled

Answer & Solution Discuss in Board Save for Later

63.
For a closed packed bcc structure of hard spheres, the lattice constant a is related to the sphere radius R as

A. a = 4R/√3

B. a = 4R√3

C. a = 4R√2

D. a = 2R√2

Answer & Solution Discuss in Board Save for Later

64.
Match the following and choose the correct combination:

Group 1 (Characteristic) Group 2 (Element)

P. Atomic configuration 1s², 2s² 2p⁶, 3s² 3p⁶ 1. Na

Q. Strongly electropositive 2. Si

R. Strongly electronegative 3. Ar

S. Covalent bonding 4. Cl

A. P-1, Q-2, R-3, S-4

B. P-3, Q-2, R-4, S-1

C. P-3, Q-1, R-4, S-2

D. P-3, Q-4, R-1, S-2

Answer & Solution Discuss in Board Save for Later

65.
Two dielectric materials A and B exhibit both ionic and orientational polarizabilities. The variation of their susceptibilities $$\chi \left( { = {\varepsilon _r} - 1} \right)$$ with temperature T is shown in the figure, where $${\varepsilon _r}$$ is the relative dielectric constant. It can be inferred from the figure that

A. A is more polar and it has a smaller value of ionic polarizability than that of B

B. A is more polar and it has a higher value of ionic polarizability than that of B

C. B is more polar and it has a higher value of ionic polarizability than that of A

D. B is more polar and it has a smaller value of ionic polarizability than that of A

Answer & Solution Discuss in Board Save for Later

66.
If the static dielectric constant of NaCl crystal is 5.6 and its optical refractive index is 1.5, the ratio of its electric polarizability to its total polarizability is

A. 0.5

B. 0.7

C. 0.8

D. 0.9

Answer & Solution Discuss in Board Save for Later

67.
In an insulating solid which one of the following physical phenomena is consequence of Pauli's exclusion principle?

A. Ionic conductivity

B. Ferromagnetism

C. Paramagnetism

D. Ferroelectricity

Answer & Solution Discuss in Board Save for Later

68.
The energy of a ferromagnet as a function of magnetization M is given by F(M) = F₀ + 2(T - T_c) M² + M⁴, F₀ > 0
The number of minima in the function F(M) for T > T_c is

A. zero

B. 1

C. 3

D. 4

Answer & Solution Discuss in Board Save for Later

69.
A sample of silicon of thickness 200 μm is doped with 10²³ phosphorus atoms per m³. If the sample is kept in a magnetic field of 0.2 Wb/m² and a current of 1 mA is passed through the sample, the Hall voltage produced is

A. 62.5 μV

B. -6.25 μV

C. +6.25 μV

D. -62.5 μV

Answer & Solution Discuss in Board Save for Later
