Control Systems MCQ Questions & Answers

91

The characteristics equation of a closed loop control system is given as s² + 4s + 16 = 0. The resonant frequency in radian/sec of the system is

A) 2 B) $$2\sqrt 3 $$ C) 4 D) $$2\sqrt 2 $$

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

92

What is the number of root-locus segments which do not terminate on zeros?

A) The number of poles B) The number of zeros C) The difference between the number of poles and the number of zeros D) The sum of the number of poles and the number of zeros

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

93

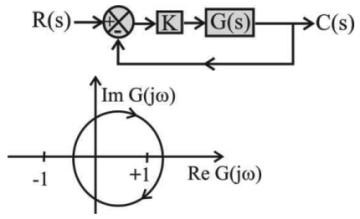

Consider the feedback system shown in the figure. The Nyquist plot of G(s) is also shown. Which one of the following conclusions is correct?
Control Systems mcq question image

A) G(s) is an all-pass filter B) G(s) is a strictly proper transfer function C) G(s) is a stable and minimum-phase transfer function D) The closed-loop system is unstable for sufficiently large and positive k

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

94

If the initial conditions for a system are inherently zero, what does it physically mean?

A) The system is at rest but stores energy B) The system is working but does not store energy C) The system is at rest or no energy is stored in any of its parts D) The system is working with zero reference input

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

95

Which of the following statements with respect to the stability of a control system is true?
1. The roots of the characteristic equation are on the left half of the s-plane.
2. The system is bounded input bounded output (BIBO) stable.
3. Stability is independent of the input.
4. The roots of the characteristic equation are on the left half of the s-plane and on the imaginary axis.

A) Only 1 and 3 are true B) Only 1, 2 are true C) Only 1, 2 and 3 are true D) Only 4 is true

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

96

In the Bode diagram of $$H\left( s \right) = 1 + \frac{s}{{10}},$$ phase at ω = 10 is

A) 45° B) -45° C) 90° D) -90°

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

97

A process is controlled by a PID controller. The sensor has high measurement noise. How can this effect be reduced?

A) By use of a bandwidth limited derivative term B) By use of proportional and derivative terms in the forward path C) By use of high proportional band D) By use of low integral gain

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

98

In a servo-system, the device used for providing derivative feedback is known as:

A) Synchro B) Servomotor C) Potentiometer D) Tachogenerator

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

99

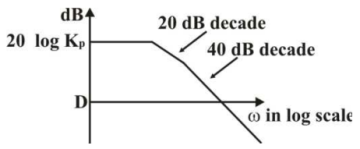

The type of system shown in the bode plot here is:
Control Systems mcq question image

A) 3 B) 1 C) 2 D) 0

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

100

In a feedback system, feedback factor of 0.1 is used with forward gain of 10. The sensitivity of the system with respect to the feedback element is

A) -0.5 B) 0.5 C) -0.9 D) 0.9

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board
