The state equation of a system is \[\mathop X\limits^ \cdot = \left[ {\begin{array}{*{20}{c}} 0&1\\ { - 20}&9 \end{array}} \right]X + \left[ \begin{array}{l} 0\\ 1 \end{array} \right]u\]
The poles of this system are located at:

A) -1, -9 B) -1, -20 C) -4, -5 D) -9, -20

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

42

An automatic washing machine is

A) A single feedback control system B) A multi-feedback control system C) An open loop control system D) None of these

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

43

The initial slope of a type 2 system is

A) -20db/dec B) -40db/dec C) +40 db/dec D) +20db/dec

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

44

The system represented by the block diagram in the following figure is a hybrid servo system.
The components labelled 1, 2, 3 and 4 respectively

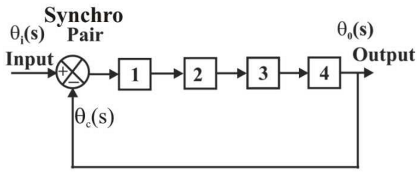

Control Systems mcq question image

A) Amplifier, demodulator, dc servomotor and load B) Demodulator, amplifier, dc servomotor and load C) Demodulator, dc servomotor, amplifier and load D) Amplifier, dc servomotor, demodulator and load

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

45

For good response of a second order control system-
1. higher tp (peak time) is needed
2. the maximum or peak overshoot must be less
3. The steady state error(ess) is less
4. The maximum or peak overshoot must be higher
Which of the above statements are correct?

A) 1, 2, 4 B) 1, 2 C) 1, 4 D) 1, 2, 3

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

46

Which of the following statements concerning the Bode plot are correct?
1. The relative stability can be obtained using Bode plots.
2. For a system with time delay, the phase plot does not reach a minimum value.
3. For a minimal system phase system, the phase plot reaches a minimum value.
4. Gain and phase margin can be used to ascertain the stability of a system using Bode plot.

A) 1, 2, 3 and 4 are correct B) Only 3 and 4 are correct C) Only 1, 2 and 4 are correct D) Only 2, 3 and 4 are correct

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

47

Consider the following systems:
Which of these systems can be modelled by the differential equation, $${a_2}\frac{{{d^2}y\left( t \right)}}{{d{t^2}}} + {a_1}\frac{{dy\left( t \right)}}{{dt}} + {a_0}y\left( t \right) = x\left( t \right)?$$

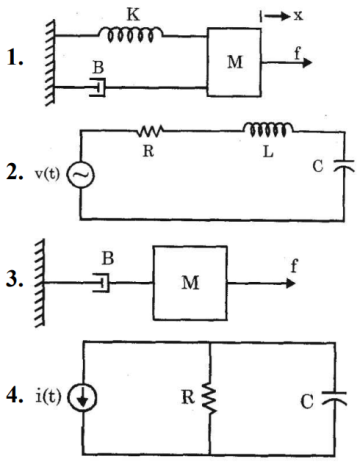

Control Systems mcq question image

A) 1 and 2 B) 1 and 3 C) 2 and 4 D) 1, 2 and 4

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

48

For a unity feedback system with open-loop transfer function $$\frac{{25}}{{s\left( {s + 6} \right)}},$$ the resonant peak output M_m and the corresponding resonant frequency ω_m are, respectively

A) 2.6 and 2.67 r/s B) 1.04 and 2.67 r/s C) 2.6 and 4.8 r/s D) 1.04 and 4.8 r/s

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

49

The relative stability and the transient performance of a closed loop control system are directly related to location of

A) Poles in the left half plane B) Zeros in the right half plane C) Closed-loop roots of the characteristic equation in the s plane D) Open loop poles

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

50

The output is said to be zero state response because . . . . . . . . conditions are made equal to zero.

A) Initial B) Final C) Steady state D) Impulse response

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board
