Signal Processing MCQ Questions & Answers

71

A system which has a unique relationship between its input and output is called

A) Linear system B) Causal system C) Time invariant system D) Invertible system

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

72

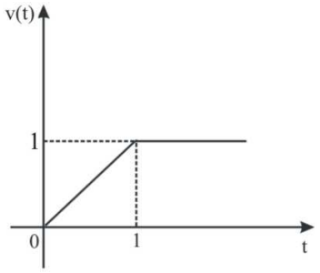

Laplace transform of the function v(t) shown in the figure is:
Signal Processing mcq question image

A) s²[1 - e^s] B) s²[1 - e^-s] C) $$\frac{1}{{{{\text{s}}^2}}}$$[1 - e^s] D) $$\frac{1}{{{{\text{s}}^2}}}$$[1 - e^-s]

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

73

Let x(t) be the input and y(t) be the output of a continuous time system. Match the system properties P₁, P₂ and P₃ with system relations R₁, R₂, R₃, R₄
Properties
P₁: Linear but NOT time-invariant
P₂: Time-invariant but NOT linear
P₃: Linear and time-invariant
Relations
R₁: y(t) = t²x(t)
R₂: y(t)= t|x(t)|
R₃: y(t) = |x(t)|
R₄: y(t) = x(t - 5)

A) (P₁, R₁), (P₂, R₃), (P₃, R₄) B) (P₁, R₂), (P₂, R₃), (P₃, R₄) C) (P₁, R₃), (P₂, R₁), (P₃, R₂) D) (P₁, R₁), (P₂, R₂), (P₃, R₃)

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

74

A system whose impulse response is zero outside of some finite interval is termed as

A) FIR B) IIR C) either FIR or IIR D) none of the above

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

75

For separating channels in FDM receivers

A) Band pass filters are used B) Band stop filters are used C) Differentiators are used D) Integrators are used

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

76

The probability cumulative distribution function must be monotone and

A) increasing B) decreasing C) non-increasing D) non-decreasing

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

77

Given that x₁(t) = e^k₁tu(t) and x₂(t) = e^-k₂tu(t). Which one of the following gives their convolution?

A) $$\frac{{\left[ {{e^{{k_1}t}} - {e^{ - {k_2}t}}} \right]}}{{\left[ {{k_1} + {k_2}} \right]}}$$ B) $$\frac{{\left[ {{e^{{k_1}t}} - {e^{ - {k_2}t}}} \right]}}{{\left[ {{k_2} - {k_1}} \right]}}$$ C) $$\frac{{\left[ {{e^{{k_1}t}} + {e^{ - {k_2}t}}} \right]}}{{\left[ {{k_2} + {k_1}} \right]}}$$ D) $$\frac{{\left[ {{e^{{k_1}t}} + {e^{ - {k_2}t}}} \right]}}{{\left[ {{k_2} - {k_1}} \right]}}$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

78

What is the magnitude square function of a normalized Butterworth filter to 1 rad/sec cut-off frequency as

A) $$\frac{1}{{1 + {{\left( \Omega \right)}^{2{\text{N}}}}}}$$ B) $$\frac{1}{{1 + {{\left( {\frac{\Omega }{{{\Omega _{{\text{ C}}}}}}} \right)}^{2{\text{N}}}}}}$$ C) $$\frac{1}{{\sqrt {1 + {{\left( {\frac{\Omega }{{{\Omega _{{\text{ C}}}}}}} \right)}^{2{\text{N}}}}} }}$$ D) $$\frac{1}{{\sqrt {1 - {{\left( {\frac{\Omega }{{{\Omega _{{\text{ C}}}}}}} \right)}^{2{\text{N}}}}} }}$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

79

If F(s) and G(s) are the Laplace transform of f(t) and g(t), then their product F(s).G(s) = H(s), where H(s) is the Laplace transform of h(t), is defined as

A) (f.g)(t) B) $$\int_0^{\text{t}} {{\text{f}}\left( \tau \right){\text{g}}\left( {{\text{t}} - \tau } \right){\text{d}}\tau } $$ C) Both A and B are correct D) f(t).g(t)

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

80

Which one of the following statements is correct for the given system?
$$y\left( n \right) = {x^2}\left( n \right) + \frac{1}{{{x^2}\left( {n - 1} \right)}}$$

A) The given system is linear, non-causal and shift-variant B) The given system is non-linear, causal and shift-invariant C) The given system is non-linear, causal and shift-variant D) The given system is linear, non-causal and shift-invariant

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board
