The Common Mode Rejection Ratio (CMRR) of a differential amplifier using an operational amplifier is 100 dB. The output voltage for a differential input of 200 μV is 2 V. The common mode gain is

A) 10 dB B) 0.1 dB C) 30 dB D) 20 dB

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

A common emitter transistor amplifier circuit is operated under a fixed bias. In this circuit, the operating point

A) remains fixed with an increase in temperature B) moves towards cut-off region with an increase in temperature C) moves towards the saturation region with a decrease in temperature D) moves towards the saturation region with an increase in temperature

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

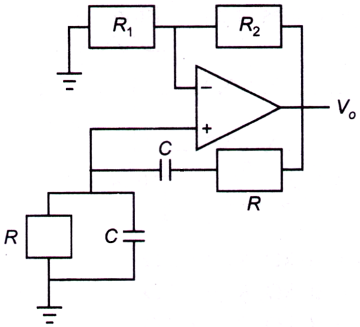

What should be the values of the components R and R₂ such that the frequency of the Wien bridge oscillator is 300 Hz? [Given, C = 0.01 μF and R₁ = 12 k$$\Omega $$ ]
Electronics mcq question image

A) R = 48 k$$\Omega $$ and R₂ = 12 k$$\Omega $$ B) R = 26 k$$\Omega $$ and R₂ = 24 k$$\Omega $$ C) R = 530 k$$\Omega $$ and R₂ = 1 M$$\Omega $$ D) R = 53 k$$\Omega $$ and R₂ = 24 k$$\Omega $$

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

RAM and ROM are

A) charge coupled devices used in computers B) computer memories C) logic gates D) binary counters used in computers

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

A power amplifier gives 150 W output for an input of 1.5 W. The gain in dB is

A) 10 B) 20 C) 40 D) 100

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

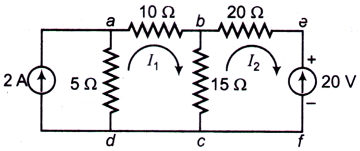

Let $${I_1}$$ and $${I_2}$$ represents mesh currents in the loop abcda and befcb respectively. The correct expression describing Kirchhoff's voltage loop law in one of the following loops is,
Electronics mcq question image

A) $$30{I_1} - 15{I_2} = 10$$ B) $$ - 15{I_1} + 20{I_2} = - 20$$ C) $$30{I_1} - 15{I_2} = - 10$$ D) $$ - 15{I_1} + 20{I_2} = 20$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

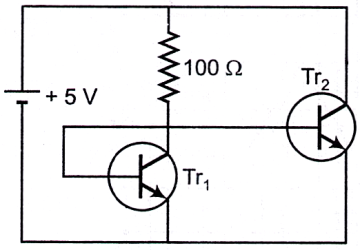

In the following circuit Tr₁ and Tr₂ are identical transistors having V_BE = 0.7 V. The current passing through the transister Tr₂ is
Electronics mcq question image

A) 57 mA B) 50 mA C) 48 mA D) 43 mA

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

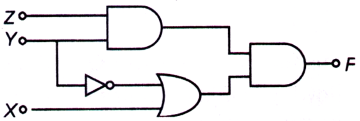

Identify the function F generated by the logic network shown.
Electronics mcq question image

A) F = (X + Y)Z B) F = Z + Y + $$\overline {\text{Y}} $$X C) F = ZY(Y + X) D) F = XYZ

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

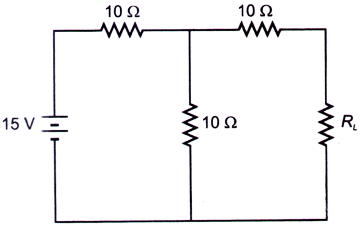

Assuming an ideal voltage source, Thevenin's resistance and Thevenin's voltage respectively for the above circuit are

A) 15 $$\Omega $$ and 7.5 V B) 20 $$\Omega $$ and 5 V C) 10 $$\Omega $$ and 10 V D) 30 $$\Omega $$ and 15 V

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

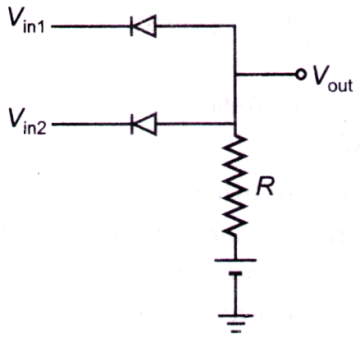

The circuit shown below can be used as
Electronics mcq question image

A) NOR gate B) OR gate C) NAND gate D) AND gate

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board
