The development of nodal equations is based on

A) KVL B) KCL C) Ohm's Law D) Ampere's Law

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

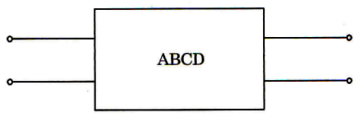

The open circuit input impedance of a 2-port network is
Network Theory and Analysis mcq question image

A) $$\frac{{\text{A}}}{{\text{C}}}\Omega $$ B) $$\frac{{\text{B}}}{{\text{D}}}\Omega $$ C) $$\frac{{\text{D}}}{{\text{C}}}\Omega $$ D) $$\frac{{\text{A}}}{{\text{B}}}\Omega $$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

The current through the 10 ohms resistance in the circuit shown below will be

A) 0.293 amperes B) 0 amperes C) 0.129 amperes D) cannot be determined

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

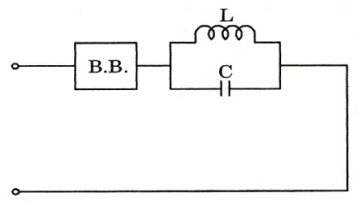

A reactance function in the first Foster form has poles at ω = 0 and ω = ∞. The black-box (B.B) in the network contains:
Network Theory and Analysis mcq question image

A) An inductor B) A capacitor C) A parallel L-C circuit D) A series L-C circuit

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

Two resistors R_A and R_B give a combined resistance of 2 Ω when they are connected in parallel and 9 Ω when connected in series. Then the values of the resistance are:

A) 4 Ω and 5 Ω B) 3 Ω and 6 Ω C) 3 Ω and 4 Ω D) 6 Ω and 9 Ω

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

The reluctance offered by a magnetic circuit consisting of two parallel paths acted upon by same magneto motive force is equal to

A) half the reluctance of each path B) the reluctance of each path C) twice the reluctance of each path D) thrice the reluctance of each path

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

A resistor R is connected to a voltage source V_S having an internal resistance R_S. A voltmeter of resistance R_m is connected across the terminals of the resistor R. The voltmeter will read a voltage of

A) $$\frac{{{V_s}{R_m}}}{{{R_s}R + {R_s}{R_m} + R{R_m}}}$$ B) $$\frac{{{V_s}R}}{{R + {R_s}}}$$ C) $$\frac{{{V_s}{R_m}}}{{R{R_s} + {R_m}}}$$ D) $$\frac{{{V_s}R{R_m}}}{{{R_s}R + {R_s}{R_m} + R{R_m}}}$$

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

A network has 7 nodes and 5 independent loops. The total number of branches in the network is

A) 13 B) 12 C) 11 D) 10

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board
