What is the Q-point for a fixed-bias transistor with IB = 75 µA; βDC = 100, VCC = 20 V, RC = 1.5 kΩ
Discuss
Answer & Solution
Answer: Option C
No explanation is given for this question. Let's Discuss on Board
92
Inside a 741 op-amp the last functional block is a
Discuss
Answer & Solution
Answer: Option D
No explanation is given for this question. Let's Discuss on Board
93
For a three-input inverting summing amplifier, $${{\text{V}}_{{\text{out}}}} = - \frac{{\left( {{{\text{V}}_1} + {{\text{V}}_2} + {{\text{V}}_3}} \right)}}{3},$$     what is the relation between Rf and R?
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
94

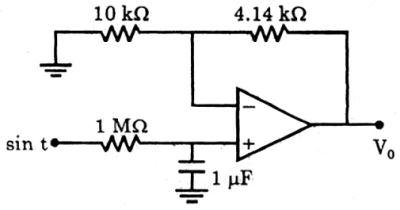

In the circuit shown in the given figure, V0 is given by
Analog Electronics mcq question image
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
95
Consider the following statements:
To draw a.c. equivalent circuit of a transistor, all
1. d.c. sources are shorted
2. a.c. sources are shorted
3. d.c. sources are opened
4. a.c. sources are connected to d.c. sources
Which of the above statements is/are correct?
Discuss
Answer & Solution
Answer: Option C
No explanation is given for this question. Let's Discuss on Board
96
In ideal op-amp the current through the virtual ground is
Discuss
Answer & Solution
Answer: Option C
No explanation is given for this question. Let's Discuss on Board
97

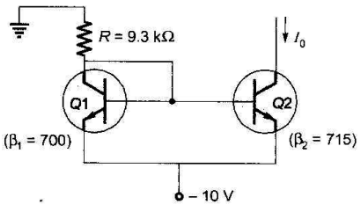

In the silicon BJT circuit shown below, assume that the emitter area of transistor Q1 is half that of transistor Q2.
The value of current I0 is approximately
Analog Electronics mcq question image
Discuss
Answer & Solution
Answer: Option B
No explanation is given for this question. Let's Discuss on Board
98
A circuit whose output is proportional to the difference between the input signals is considered to be which type of amplifier?
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
99
If the base current of a BJT is 250 µA and emitter is 15 mA, then the common base current gain will be
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
100

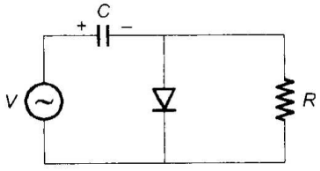

If the circuit shown has to function as a clamping circuit, then which one of the following conditions should be satisfied for the sinusoidal signal of period T?
Analog Electronics mcq question image
Discuss
Answer & Solution
Answer: Option D
No explanation is given for this question. Let's Discuss on Board
