Control Systems MCQ Questions & Answers

51

Which of the following can work as error detecting devices?
1. A pair of potentiometers
2. A pair of synchros
3. A differential transformer
4. A Metadyne
5. A control transformer

A) 1, 2 and 5 B) 2, 3, 4 and 5 C) 1, 3, 4 and 5 D) 1, 2, 3 and 4

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

52

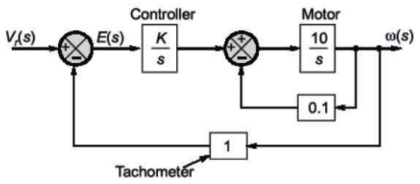

Consider the speed control system shown in the figure wherein the inner loop corresponds to motor back e.m.f, the controller is an integrator with gain K observes that the load is inertia only. What is the value of K for which steady-state error to unit ramp input $$\left( {{V_r}\left( s \right) = \frac{1}{{{s^2}}}} \right)$$ is less than 0.01 rad/sec?
Control Systems mcq question image

A) 5 B) 7 C) 10 D) 14

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

53

The root locus of the system $$G\left( s \right)H\left( s \right) = \frac{K}{{s\left( {s + 2} \right)\left( {s + 3} \right)}},$$ has the break-away point located at

A) (-0.5, 0) B) (-2.548, 0) C) (-4, 0) D) (-0.784, 0)

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

54

The closed loop transfer function of a control system is: $$\frac{K}{{s\left( {s + 1} \right)\left( {s + 5} \right) + K}}$$
What is the frequency of the sustained oscillations for marginally stable condition?

A) $$\sqrt 5 $$ rad/s B) $$\sqrt 6 $$ rad/s C) 5 rad/s D) 6 rad/s

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

55

Of the following transfer function second order linear time-invariant systems, the underdamped system is represented by

A) $$H\left( s \right) = \frac{1}{{{s^2} + 4s + 4}}$$ B) $$H\left( s \right) = \frac{1}{{{s^2} + 5s + 4}}$$ C) $$H\left( s \right) = \frac{1}{{{s^2} + 4.5s + 4}}$$ D) $$H\left( s \right) = \frac{1}{{{s^2} + 3s + 4}}$$

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

56

The current through a circuit element is $$\frac{{4{s^2}}}{{s + 7}}.$$ The current in t domain at t → ∞ and t → 0 will be respectively:

A) Zero and One B) Zero and Infinity C) Infinity and Zero D) Infinity and One

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

57

If a system is critically damped and gain is increased, the system

A) becomes overdamped B) becomes underdamped C) becomes oscillatory D) remains critically underdamped

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

58

A second-order linear time-invariant system is described by the following state equations
\[\frac{{\rm{d}}}{{{\rm{dt}}}}\] x₁(t) + 2x₁(t) = 3u(t)
\[\frac{{\rm{d}}}{{{\rm{dt}}}}\] x₂(t) + x₂(t) = u(t)
where x₁(t) and x₂(t) are the two state variables and u(t) denotes the input. If the output c(t) = x₁(t) , then the system is

A) controllable but not observable B) observable but not controllable C) both controllable and observable D) neither controllable nor observable

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

59

In feedback control system with $$G\left( s \right) = \frac{{16}}{{s\left( {s + 4} \right)}}$$ and H(s) = 1 + Ks, the damping ratio of 0.6 will be achieved for K equal to

A) 0.1 B) 0.02 C) 0.025 D) 0.05

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

60

Which one of the following characteristic equation of result in the stable operation of the feedback system?

A) s³ + 4s² + s - 6 = 0 B) s³ + s² + 5s + 6 = 0 C) s³ + 4s² + 10s + 11 = 0 D) s⁴ + s³ + 2s² + 4s + 6 = 0

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board
