The induced emf in a coil is given as:

A) $$e = L\frac{{{d^2}i}}{{d{t^2}}}$$ B) $$e = L\frac{{d\varphi }}{{dt}}$$ C) $$e = L\frac{{di}}{{dt}}$$ D) $$e = - L\frac{{di}}{{dt}}$$

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

92

A switch is connected in between a 12 V battery and an uncharged capacitor and a 1 KΩ resistor. At the time instant when the switch is closed, the voltage across the capacitor is:

A) 6 V B) 12 V C) 0 V D) 24 V

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

93

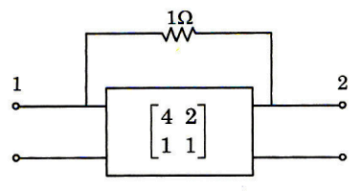

The Y parameters of a four-terminal block are \[\left[ {\begin{array}{*{20}{c}} 4&2 \\ 1&1 \end{array}} \right].\] A single element of 1 ohm is connected across as shown in the given figure. The new Y parameters will be
Network Theory and Analysis mcq question image

Network Theory and Analysis mcq question image

A) \[\left[ {\begin{array}{*{20}{c}} 5&1 \\ 0&2 \end{array}} \right]\] B) \[\left[ {\begin{array}{*{20}{c}} 4&3 \\ 2&2 \end{array}} \right]\] C) \[\left[ {\begin{array}{*{20}{c}} 3&2 \\ 1&2 \end{array}} \right]\] D) \[\left[ {\begin{array}{*{20}{c}} 4&2 \\ 1&1 \end{array}} \right]\]

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

94

A source of angular frequency 1 rad/sec has a source impedance consisting of 1 Ω resistors in series with 1 H inductance. The load that will obtain the maximum power transfer is

A) 1 Ω resistance B) 1 Ω resistance in parallel with 1 H inductance C) 1 Ω resistance in series with 1 F capacitor D) 1 Ω resistance in parallel with 1 F capacitor

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

95

If $$Z\left( s \right) = \frac{{\left( {s + 4} \right)\left( {s + 9} \right)}}{{\left( {s + 1} \right)\left( {s + 16} \right)}}$$ is a driving point impedance, it represents an

A) R-C impedance B) R-L impedance C) L-C impedance D) R-L-C impedance

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

96

A bar of certain material having rectangular cross section is one metre in length and has a cross section of 0.0001 square metres. The value of its longitudinal resistance is 100 ohms. The value of its resistivity would be:

A) 1 ohm metre B) 0.01 ohm metre C) 0.0001 ohm metre D) 100 ohm metre

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

97

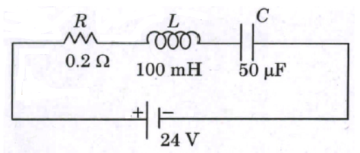

For the circuit given, find the current I at resonance condition
Network Theory and Analysis mcq question image

A) 120 A B) 128 A C) 132 A D) 134 A

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

98

Which of the following capacitors has the highest cost per µF?

A) Plastic B) Electrolytic C) Mica D) Air

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

99

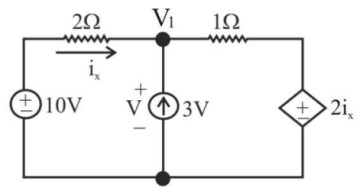

In the circuit shown in figure, determine the value of i_x-
Network Theory and Analysis mcq question image

A) i_x = 1A B) i_x = 1.5A C) i_x = 0.14A D) i_x = 1.4A

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

100

The crest factor of a sine wave having peak value of 12 V and rms value 8.48 is

A) 0.415 B) 1.415 C) 2.415 D) 3.415

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board
