Network Theory And Analysis MCQ Questions & Answers

81

In the Thevenin equivalent circuit, V_th equals

A) short-circuit terminal voltage B) open-circuit terminal voltage C) net voltage available in the circuit D) voltage of the source

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

82

The unit of electrical conductivity is

A) mho/meter B) mho/m² C) ohm/m D) ohm/m²

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

83

A series LCR circuit consisting of R = 10 Ω, |X_L| = 20 Ω and |X_C| = 20 Ω is connected across an a.c. supply of 200 V rms. The rms voltage across the capacitor is

A) 200∠-90° V B) 200∠+90° V C) 400∠+90° V D) 400∠-90° V

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

84

A polynomial must satisfy the condition that

A) Z(s) is a real function B) All the roots of P(s) have zero real parts or negative real parts C) Both A and B D) None of the above

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

85

Which of the following pairs are correctly matched?
1. Brune's realization ⟺ Realization with ideal transformer
2. Couer realization ⟺ Ladder realization
3. Bott-Duffin realization ⟺ Realization with non-ideal transformer⟺ Select the correct answer using the options given below:

A) 1, 2 and 3 B) 2 and 3 C) 1 and 3 D) 1 and 2

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

86

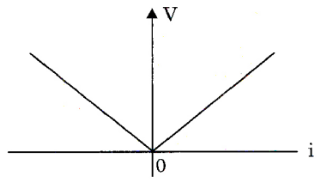

The V-I characteristics of an element is shown in the below figure. The element is
Network Theory and Analysis mcq question image

A) Non-linear, active, non-bilateral B) Linear, active, non-bilateral C) Non-linear, passive, non-bilateral D) Non-linear, active, bilateral

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

87

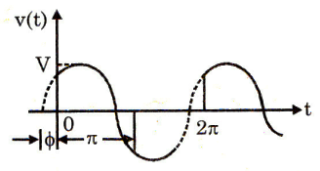

The average value of the periodic function v(t) of the given figure is
Network Theory and Analysis mcq question image

A) $$\frac{{V\cos \phi }}{\pi }$$ B) $$\frac{{V\sin \phi }}{\pi }$$ C) $$\frac{{2V\sin \phi }}{\pi }$$ D) $$\frac{V}{\pi }$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

88

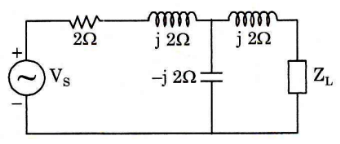

Which one of the following impedance values of load will cause maximum power to be transferred to the load for the network shown in the given figure?
Network Theory and Analysis mcq question image

A) (2 + j2) Ω B) (2 - j2) Ω C) -j2 Ω D) 2 Ω

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

89

The unit of inductance is

A) Ohm B) Mho C) Farad D) Henry

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

90

Match List-I with List-II and select the correct answer using the options given below:

List-I (Form)	List-II (Networks)
a. Couer I	1. L in series arms and C in shunt arms of a ladder
b. Couer II	2. C in series arms and L in shunt arms of a ladder
c. Foster I	3. Series combination of L and C in parallel
d. Foster II	4. Parallel combination of L and C in series

A) a-1, b-2, c-3, d-4 B) a-1, b-2, c-4, d-3 C) a-2, b-1, c-4, d-3 D) a-2, b-1, c-3, d-4

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board
