The voltage V_C₁, V_C₂ and V_C₃ across the capacitor in the circuit in Figure, under steady state, are respectively.
Network Theory and Analysis mcq question image

Network Theory and Analysis mcq question image

A) 80 V, 32 V, 48 V B) 80 V, 48 V, 32 V C) 20 V, 8 V, 12 V D) 20 V, 12 V, 8 V

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

If the length of a wire of resistance R is uniformly stretched to n times its original value, its new resistance is

A) $${\text{nR}}$$ B) $$\frac{{\text{R}}}{{\text{n}}}$$ C) $${{\text{n}}^2}{\text{R}}$$ D) $$\frac{{\text{R}}}{{{{\text{n}}^2}}}$$

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

The equivalent inductance measured between the terminals 1 and 2 for the circuit shown in the figure is
Network Theory and Analysis mcq question image

A) L₁ + L₂ + M B) L₁ + L₂ - M C) L₁ + L₂ + 2M D) L₁ + L₂ - 2M

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

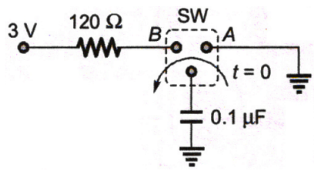

In the circuit shown, the switch SW is thrown from position A to position B at time t = 0. The energy taken from the 3 V source to charge the 0.1 µF capacitor form 0 V to 3 V is
Network Theory and Analysis mcq question image

A) 0.3 B) 0.45 C) 0.9 D) 3

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

A transient current in a network is i(t) = 2e^-t - e^-5t, t ≥ 0, the pole-zero configuration of I(s) is

A) poles : 1, 5 zeros : 9 B) poles : -1, -5 zeros : -9 C) poles : 2, -1 zeros : -1, -5 D) poles : 2, -1 zeros : 1, 5

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

In the transformer shown in the figure below, the inductance measured across the terminal 1 and 2 was 4 H with open terminals 3 and 4. It was 3 H when the terminal 3 and 4 were short circuited. The coefficient of coupling would be
Network Theory and Analysis mcq question image

A) 1 B) 0.0707 C) 0.5 D) indeterminate due to insufficient data

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

The value of R (in ohms) required for maximum power transfer in the network shown in the figure is
Network Theory and Analysis mcq question image

A) 2 B) 4 C) 8 D) 16

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

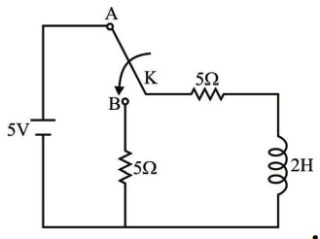

In the following circuit, switch K is thrown from position A to position B at time t = 0, the currenthaving previously reached its steady state:
The current i(t) after switching will be
Network Theory and Analysis mcq question image

A) 5e^-5t B) 4e^-5t C) 3e^-5t D) e^-5t

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

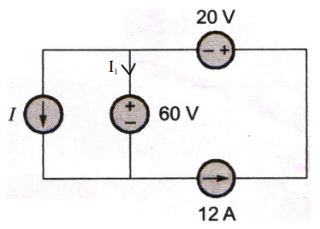

In the interconnection of ideal sources shown in the figure, it is known that the 60 V source is absorbing power.
Which of the following can be value of the current source I?
Network Theory and Analysis mcq question image

A) 10 A B) 13 A C) 15 A D) 18 A

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

100

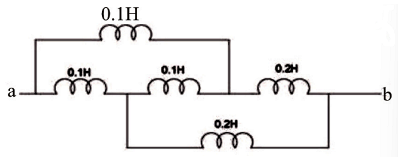

The equivalent inductance across 'ab' for the diagram shown below is:
Network Theory and Analysis mcq question image

A) 0.5 H B) 0.15 H C) 0.3 H D) 1 H

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board
