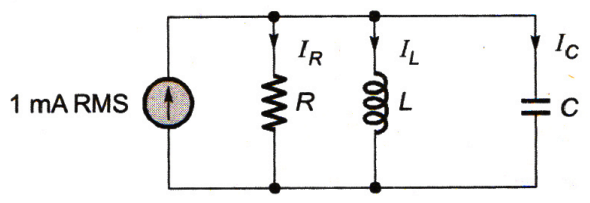

The parallel RLC circuit shown in figure is in resonance. In this circuit
Network Theory and Analysis mcq question image
Discuss
Answer & Solution
Answer: Option B
No explanation is given for this question. Let's Discuss on Board
42
In the figure, the switch is thrown from position 1 to 2 at time t = 0. Just before the switch is thrown, the initial conditions are iL (0-) = 2 A, VC (0-) = 2 V. What is the current i(t) after switching action?
Network Theory and Analysis mcq question image
Discuss
Answer & Solution
Answer: Option B
No explanation is given for this question. Let's Discuss on Board
43
The current through a series RL circuit $$\frac{1}{4}{{\text{e}}^{ - {\text{t}}/2}}$$  when excited by a unit impulse voltage. The values of R and L are respectively
Discuss
Answer & Solution
Answer: Option C
No explanation is given for this question. Let's Discuss on Board
44
The voltage V in figure is always equal to
Network Theory and Analysis mcq question image
Discuss
Answer & Solution
Answer: Option D
No explanation is given for this question. Let's Discuss on Board
45
Consider the circuit shown in the figure with input V(t) in volts. The sinusoidal steady state current I(t) flowing through the circuit is shown graphically (where t is in seconds). The circuit element Z can be . . . . . . . .
Network Theory and Analysis mcq question image
Discuss
Answer & Solution
Answer: Option B
No explanation is given for this question. Let's Discuss on Board
46

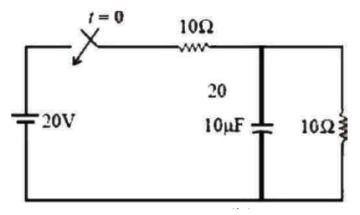

In the figure given below, the initial capacitor voltage is zero. Then after switch is closed at t = 0 , Calculate the final steady state voltage across the circuit:
Network Theory and Analysis mcq question image
Discuss
Answer & Solution
Answer: Option B
No explanation is given for this question. Let's Discuss on Board
47
Electrolytic Capacitors are generally made of
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
48
The length of a certain conductor of resistance 100 Ω is doubled and its cross-sectional area is halved. Its new resistance is:
Discuss
Answer & Solution
Answer: Option D
No explanation is given for this question. Let's Discuss on Board
49
Find the current I in figure below:
Network Theory and Analysis mcq question image
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
50

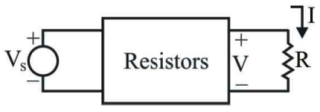

In the circuit shown, for different values of R, the values of V and I are given, other elements remaining the same
When R = ∞, V = 5V
When R = 0, I = 2.5 A
When R = 3 Ω, the value of V is given by
Network Theory and Analysis mcq question image
Discuss
Answer & Solution
Answer: Option C
No explanation is given for this question. Let's Discuss on Board
