51. The network shown in the figure draw a current I. If the ends a and b are shorted, the current drawn would be

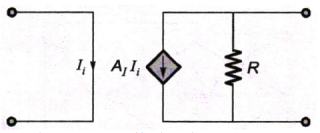

52. The circuit shown in the figure represents a

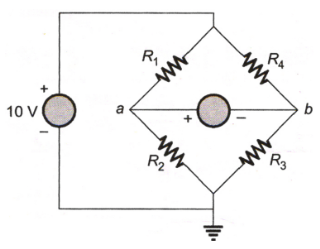

53. If R1 = R2 = R4 = R and R3 = 1.1 R in the bridge circuit shown in the figure, then the reading in the ideal voltmeter connected between a and b is

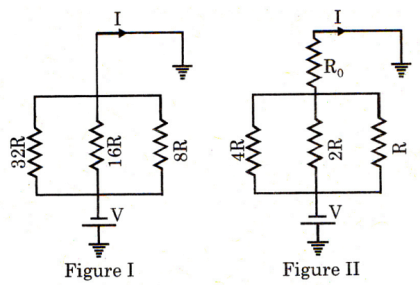

54. The circuit shown in Figure-I is replaced by that in Figure-II. If current 'I' remains the same, then R0 will be

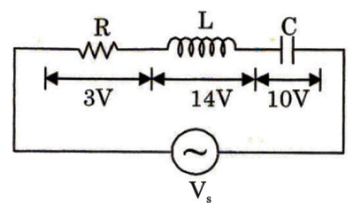

55. Voltage on R, L, C in series circuit are shown below. Value of voltage sources is

56. For the transfer function of a physical two port network which one of the following statement is not true.
57. When a body is moving along a circular path with constant speed

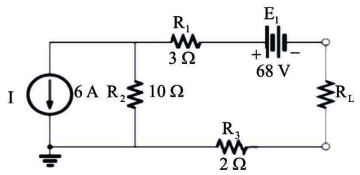

58. What is maximum power delivered to the load?

59. Two magnetically uncoupled inductive coils have Q factors q1 and q2 at the chosen operating frequency. Their respective resistances are R1 and R2. When connected in series, their effective Q factor at the same operating frequency is
60. Two lamps each of 230 V and 60 W rating are connected in series across a single phase 230 V supply. The total power consumed by the two lamps would be
Read More Section(Network Theory and Analysis)
Each Section contains maximum 100 MCQs question on Network Theory and Analysis. To get more questions visit other sections.
