Network Theory And Analysis MCQ Questions & Answers

81

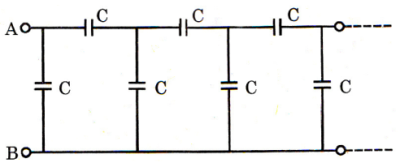

The effective capacitance across AB of the infinite ladder shown in the below figure is
Network Theory and Analysis mcq question image

A) $$\left( {1 + \sqrt 3 } \right)C$$ B) $$\left( {1 + \sqrt 7 } \right)C$$ C) $$\left( {1 + \sqrt 5 } \right)C$$ D) $$\frac{{\left( {1 + \sqrt 5 } \right)}}{2}C$$

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

82

The resistances in the higher range are mostly made of:

A) Carbon B) Aluminium C) Silicon D) Germanium

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

83

In the series RC circuit shown in the given figure, the rms value of the voltage E is 1 V. If the average power dissipated is equal to 500 mW, then the phase angle between the voltage and current will be
Network Theory and Analysis mcq question image

A) 90° B) 60° C) 45° D) 30°

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

84

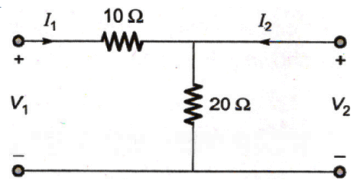

The h-parameters of the circuit shown in the figure are
Network Theory and Analysis mcq question image

A) \[\left[ {\begin{array}{*{20}{c}} {0.1}&{0.1} \\ { - 0.1}&{0.3} \end{array}} \right]\] B) \[\left[ {\begin{array}{*{20}{c}} {10}&{ - 1} \\ 1&{0.05} \end{array}} \right]\] C) \[\left[ {\begin{array}{*{20}{c}} {30}&{20} \\ {20}&{20} \end{array}} \right]\] D) \[\left[ {\begin{array}{*{20}{c}} {10}&1 \\ { - 1}&{0.05} \end{array}} \right]\]

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

85

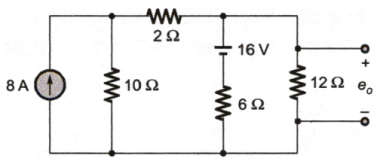

The voltage e₀ in the figure is
Network Theory and Analysis mcq question image

A) 48 V B) 24 V C) 36 V D) 28 V

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

86

Thevenin resistance can be found by taking the ratio (o.c = open circuit, s.c = short circuit, V_s = supply voltage, V_L = load voltage)

A) $$\frac{{{{\text{V}}_{{\text{OC}}}}}}{{{{\text{I}}_{{\text{SC}}}}}}$$ B) $$\frac{{{{\text{V}}_{{\text{SC}}}}}}{{{{\text{I}}_{{\text{OC}}}}}}$$ C) $$\frac{{{{\text{V}}_{\text{S}}}}}{{{{\text{I}}_{\text{S}}}}}$$ D) $$\frac{{{{\text{V}}_{\text{L}}}}}{{{{\text{I}}_{\text{L}}}}}$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

87

The permeability and permittivity of a medium are

A) independent of each other B) related by the velocity of electromagnetic wave C) related by the Boltzmann's constant D) None of the above

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

88

The driving point impedance of the network shown in figure is
Network Theory and Analysis mcq question image

A) 10 + 2s B) 10 + 2s + $$\frac{1}{{\text{s}}}$$ C) 10 D) $$\frac{1}{{\text{s}}}$$

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

89

Find equivalent capacitance of the following circuit.

A) $$2\frac{2}{3}\mu {\text{F}}$$ B) $$3\frac{1}{3}\mu {\text{F}}$$ C) $$4\frac{2}{3}\mu {\text{F}}$$ D) $$6\,\mu {\text{F}}$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

90

Which one of the following is an LC immittance function?

A) $$Z\left( s \right) = \frac{{Ks\left( {{s^2} + 4} \right)}}{{\left( {{s^2} + 1} \right)\left( {{s^2} + 3} \right)}}$$ B) $$Z\left( s \right) = \frac{{{s^5} + 4{s^3} + 5s}}{{3{s^4} + 6{s^2}}}$$ C) $$Z\left( s \right) = \frac{{K\left( {{s^2} + 1} \right)\left( {{s^2} + 9} \right)}}{{\left( {{s^2} + 2} \right)\left( {{s^2} + 10} \right)}}$$ D) $$Z\left( s \right) = \frac{{2\left( {{s^2} + 1} \right)\left( {{s^2} + 9} \right)}}{{s\left( {{s^2} + 4} \right)}}$$

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board
