Learn Network Theory And Analysis MCQ questions & answers are available for a Electronics and Communications Engineering(ECE) students to clear GATE exams, various technical interview, competitive examination, and another entrance exam. Network Theory And Analysis MCQ question is the important chapter for a Electronics and Communications Engineering(ECE) and GATE students. Page-9 section-3

Each section contains 100 MCQs on Network Theory and Analysis .

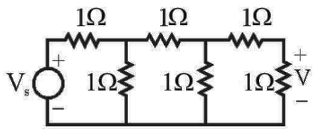

The Voltage across the last resistor is V. All resistors are unity. Then Vs is given by
Network Theory and Analysis mcq question image

A) 13 V B) 8 V C) 4 V D) 1 V

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

The colour band on the extreme left in general purpose fixed resistors represents:

A) Tolerance B) First significant digit C) Wattage Rating D) Voltage Rating

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

Two inductively coupled coils have self inductance L₁ = 50 mH, L₂ = 200 mH. Find the value of maximum possible mutual inductance if the coefficient of coupling is 0.5.

A) 50 mH B) 100 mH C) 125 mH D) 150 mH

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

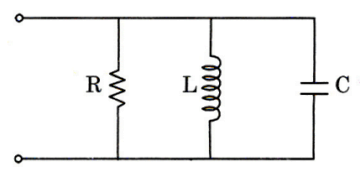

The circuit shown in the Figure, is to be scaled to an impedance level of 5 kΩ and a resonant frequency of 5 M rad/s. Which one of the following is a correct set element values for the scaled circuit?
Network Theory and Analysis mcq question image

A) 2.5 Ω, 0.2 mH, 200 pF B) 5 kΩ, 0.2 mH, 200 pF C) 5 kΩ, 0.2 mH, 200 µF D) 5 kΩ, 0.1 mH, 0.4 µF

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

The common voltage across parallel branches with different voltage sources can be determined by

A) Superposition theorem B) Thevenin's theorem C) Norton's theorem D) Millman's theorem

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

Six light bulbs are connected in parallel across 110 volt. Each bulb is 75 Watt. The current flows through each bulb is

A) 0.682 A B) 0.482 A C) 0.382 A D) 0.282 A

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

For a 3-pF capacitor with 20 V across it, the energy stored will be:

A) 60 J B) 600 pJ C) 60 pJ D) 6 J

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

Two similar mutually coupled coils have a total inductance of 900 mH co-efficient of coupling is 0.5. The self inductance of each coil is

A) 300 mH B) 150 mH C) 75 mH D) 50 mH

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

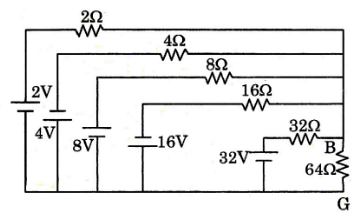

Obtain potential of node B with respect to node G in the network shown in the figure.
Network Theory and Analysis mcq question image

A) $$\frac{{64}}{{63}}{\text{V}}$$ B) $$1\,{\text{V}}$$ C) $$\frac{{63}}{{64}}{\text{V}}$$ D) $$\frac{{32}}{{63}}{\text{V}}$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

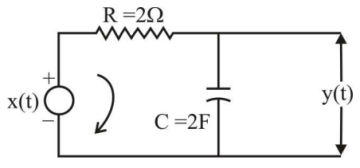

The response of the LTI (Linear Time Invariant) system:
For input x(t) = δ(t) is:
Network Theory and Analysis mcq question image

A) $$\frac{1}{4}{e^{ - t/4}}u\left( t \right)$$ B) $$\frac{1}{4}{e^{ - 4t}}u\left( t \right)$$ C) $$\frac{1}{2}{e^{ - 1/2t}}u\left( t \right)$$ D) $$\frac{1}{2}{e^{ - 2t}}u\left( t \right)$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board
