Power Electronics MCQ Questions & Answers

21

An SCR remains turned on if the anode current is more than the

A) Breakdown current B) Trigger current C) Holding current D) Threshold current

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

22

Calculate the power factor of a single-phase thyristor-controlled bridge rectifier if the firing angle is 30°.

A) 0.686 B) 0.866 C) 0.78 D) 0.9

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

23

An incremental model of a solid state device is one which represents the

A) ac property of the device at the desired operating point B) dc property of the device at all operating points C) complete ac and dc behaviour of the device at all operating points D) ac property of the device at all operating points

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

24

Which of the following thyristors can be used for high frequency of operation?

A) TRIAC B) DIAC C) SCR D) GTO

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

25

For harmonic distortion reading of D₂ = 0.1, D₃ = 0.02 and D₄ = 0.01, with I₁ = 4 A and R_C = 8 Ω, calculate the total harmonic distortion (THD) fundamental power component (P₁), and total power (P).

A) THD = 0.1; P₁ = 64 W and P = 64.64 W B) THD = 0.2; P₁ = 32 W and P = 32.32 W C) THD = 0.1; P₁ = 32 W and P = 32.32 W D) THE = 0.2; P₁ = 64 W and P = 64.32 W

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

26

The ON voltage and forward break over voltage of an SCR depend on the

A) gate current alone B) bandgap of the semiconductor alone C) gate current and the semiconductor bandgap respectively D) semiconductor bandgap and the gate current respectively

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

27

Once the SCR starts conducting a forward current, its gate loses control over

A) Anode circuit voltage only B) Anode circuit current only C) Anode circuit current and voltage D) Anode circuit current, voltage and time

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

28

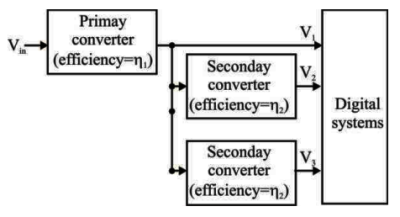

A High speed digital subsystem requires three voltages V₁, V₂ and V₃ with 1 : 2 : 1 power ratings, respectively. The power supply is designed with the distribute power conversion scheme as shown in the following figure. What is the overall power conversion efficiency?
Power Electronics mcq question image

A) $$\frac{{4 \times {\eta _1} \times {\eta _2} \times {\eta _3}}}{{{\eta _2}{\eta _3} + 2 \times {\eta _3} + {\eta _2}}}$$ B) $$\frac{{{\eta _1} \times {\eta _2} \times {\eta _3}}}{{{\eta _2}{\eta _3} + 2 \times {\eta _3} + {\eta _2}}}$$ C) $$\frac{{4 \times {\eta _1} \times {\eta _2} \times {\eta _3}}}{{{\eta _2}{\eta _3} + {\eta _2} + {\eta _3}}}$$ D) $$\frac{{2 \times {\eta _1} \times {\eta _2} \times {\eta _3}}}{{{\eta _2}{\eta _3} + {\eta _2} + {\eta _3}}}$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

29

DC choppers belong to the category of,

A) DC - DC converter B) AC - DC converter C) Inverter D) AC - AC converter

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

30

A Triac has three terminals viz . . . . . . . .

A) Drain, source, gate B) Two main terminal and a gate terminal C) Cathode, anode, gate D) None of the above

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board
