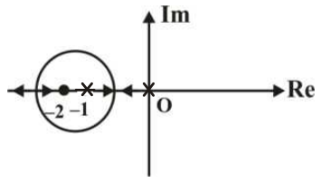

The below figure shows the root locus of a unity feedback system. The open loop transfer function of the system is:
Control Systems mcq question image

Answer & Solution
Correct Answer: Option D
