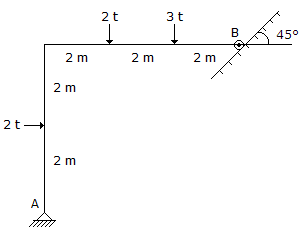

What is the answer to this question?
Applied Mechanics and Graphic Statics mcq question image

A) Zero B) 2 t C) 3 t D) 1 t

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

Which of the following represents the state of neutral equilibrium?

A) A cube resting on one edge B) A smooth cylinder lying on a curved surface C) A smooth cylinder lying on a convex surface D) None of the above

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

A square hole is made in a circular lamina, the diagonal of the square is equal to the radius of the circle as shown in below figure the shift in the centre of gravity is
Applied Mechanics and Graphic Statics mcq question image

A) $$\frac{{{\text{r}}\left( {\pi - 0.75} \right)}}{{\left( {\pi - 0.5} \right)}}$$ B) $$\frac{{{\text{r}}\left( {\pi - 0.25} \right)}}{{\left( {\pi - 0.75} \right)}}$$ C) $$\frac{{{\text{r}}\left( {\pi - 0.5} \right)}}{{\left( {\pi - 0.75} \right)}}$$ D) $$\frac{{{\text{r}}\left( {\pi - 0.5} \right)}}{{\left( {\pi - 0.25} \right)}}$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

The potential energy of a particle falling through a straight shaft drilled through the earth (assumed homogenous and spherical) is proportional to (where r is the distance of’the particle from centre of the earth)

A) log r B) r C) r² D) $$\frac{1}{{\text{r}}}$$

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

A stone is whirled in a vertical circle, the tension in the string, is maximum

A) When the string is horizontal B) When the stone is at the highest position C) When the stone is at the lowest position D) At all the positions

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

The graphical method of determining the forces in the members of a truss is based on

A) Method of joint B) Method of section C) Either method D) None of the two methods

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

The shape of a suspended cable under its own weight, is

A) Parabolic B) Circular C) Catenary D) Elliptical

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

The maximum value of the horizontal range for a projectile projected with a velocity of 98 m/sec is

A) 98 m B) 490 m C) 980 m D) 1960 m

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

A geo-stationary satellite is one which orbits the earth with a velocity of rotation of

A) Moon B) Earth C) Sun D) Pole

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

A particle moving with a simple harmonic motion, attains its maximum velocity when it passes

A) The extreme point of the oscillation B) Through the mean position C) Through a point at half amplitude D) None of these

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board
