In a Wien bridge oscillator, the positive feedback attenuation is
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
62
Which one of the following multivibrators does not required input clock pulse or trigger?
Discuss
Answer & Solution
Answer: Option C
No explanation is given for this question. Let's Discuss on Board
63
The MOSFET switch in its on-state may be considered equivalent to:
Discuss
Answer & Solution
Answer: Option B
No explanation is given for this question. Let's Discuss on Board
64

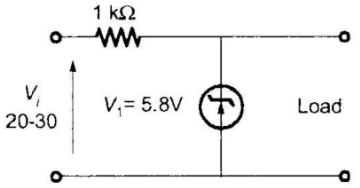

The Zener diode in the regulator circuit shown in the figure has a Zener voltage of 5.8 volts and a Zener knee current of 0.5 mA. The maximum load current drawn from this circuit ensuring proper functioning over the input voltage range between 20 and 30 volts, is
Analog Electronics mcq question image
Discuss
Answer & Solution
Answer: Option C
No explanation is given for this question. Let's Discuss on Board
65
A power transfer used in class A amplifier has zero signal power dissipation of 10 Watts. If the AC power is 4 W. Calculate collector efficiency.
Discuss
Answer & Solution
Answer: Option D
No explanation is given for this question. Let's Discuss on Board
66
With reference to the negative feedback voltage - series configuration, which of the following statements is/are correct?
1. Bandwidth increases.
2. Non-linear distortion decreases.
Select correct answer.
Discuss
Answer & Solution
Answer: Option C
No explanation is given for this question. Let's Discuss on Board
67

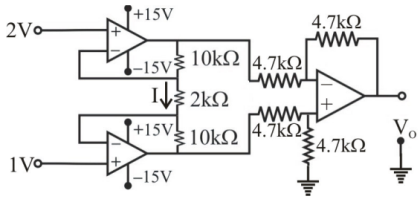

What is the output voltage V0 of the above circuit?
Analog Electronics mcq question image
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
68

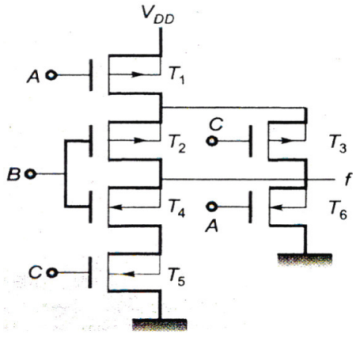

In figure T1, T2 and T3 are p-channel MOS transistors, and T4, T5 and T6 are n-channel MOS transistors. A, B and C are binary signals. The output f(A, B, C) is
Analog Electronics mcq question image
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
69

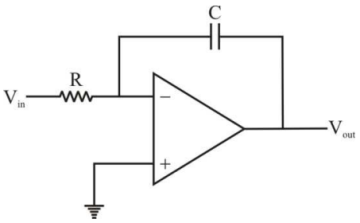

OPAMP circuit given below is a . . . . . . . .
Analog Electronics mcq question image
Discuss
Answer & Solution
Answer: Option B
No explanation is given for this question. Let's Discuss on Board
70
For a class-A power amplifier, supply dc voltage is ± 12 V, the quiescent collector current is 72 mA and the load resistance is 100 Ω. If the output voltage across the load is 12 V peak-to-peak, the efficiency of the amplifier is (neglect the loss occurring in the biasing resistors):
Discuss
Answer & Solution
Answer: Option B
No explanation is given for this question. Let's Discuss on Board
