Control Systems MCQ Questions & Answers

21

From the figure shown below, the Transfer function of the signal flow graph is:
Control Systems mcq question image

A) $$\frac{{{{\text{T}}_{12}}}}{{1 - {{\text{T}}_{22}}}}$$ B) $$\frac{{{{\text{T}}_{22}}}}{{1 - {{\text{T}}_{12}}}}$$ C) $$\frac{{{{\text{T}}_{12}}}}{{1 + {{\text{T}}_{22}}}}$$ D) $$\frac{{{{\text{T}}_{22}}}}{{1 + {{\text{T}}_{12}}}}$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

22

In a closed loop system for which the output is the speed of a motor, the output rate control can be used to:

A) Limit the speed of the motor B) Limit the torque output of the motor C) Reduce the damping of the system D) Limit the acceleration of the motor

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

23

The following quantities give a measure of the transient characteristics of a control system, when subjected to unit step excitation:
1. Maximum overshoot
2. Maximum undershoot
3. Overall gain
4. Delay time
5. Rise time
6. Fall time

A) 1, 3 and 5 B) 2, 4 and 5 C) 2, 4 and 6 D) 1, 4 and 5

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

24

For the given circuit, which one of the following is the correct state equation?
Control Systems mcq question image

A) \[\frac{d}{{dt}}\left[ \begin{array}{l} v\\ i \end{array} \right] = \left[ {\begin{array}{*{20}{c}} { - 4}&4\\ { - 2}&{ - 4} \end{array}} \right]\left[ \begin{array}{l} v\\ i \end{array} \right] + \left[ {\begin{array}{*{20}{c}} 0&4\\ 4&0 \end{array}} \right]\left[ \begin{array}{l} {i_1}\\ {i_2} \end{array} \right]\] B) \[\frac{d}{{dt}}\left[ \begin{array}{l} v\\ i \end{array} \right] = \left[ {\begin{array}{*{20}{c}} { - 4}&{ - 4}\\ { - 2}&{ - 4} \end{array}} \right]\left[ \begin{array}{l} v\\ i \end{array} \right] + \left[ {\begin{array}{*{20}{c}} 4&0\\ 0&4 \end{array}} \right]\left[ \begin{array}{l} {i_1}\\ {i_2} \end{array} \right]\] C) \[\frac{d}{{dt}}\left[ \begin{array}{l} v\\ i \end{array} \right] = \left[ {\begin{array}{*{20}{c}} { - 4}&{ - 4}\\ { - 2}&4 \end{array}} \right]\left[ \begin{array}{l} v\\ i \end{array} \right] + \left[ {\begin{array}{*{20}{c}} 4&4\\ 4&0 \end{array}} \right]\left[ \begin{array}{l} {i_1}\\ {i_2} \end{array} \right]\] D) \[\frac{d}{{dt}}\left[ \begin{array}{l} v\\ i \end{array} \right] = \left[ {\begin{array}{*{20}{c}} 4&{ - 4}\\ { - 2}&{ - 4} \end{array}} \right]\left[ \begin{array}{l} v\\ i \end{array} \right] + \left[ {\begin{array}{*{20}{c}} 0&4\\ 4&4 \end{array}} \right]\left[ \begin{array}{l} {i_1}\\ {i_2} \end{array} \right]\]

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

25

What is the value of K for a unity feedback system with $$G\left( s \right) = \frac{K}{{s\left( {1 + s} \right)}}$$ to have a peak overshoot of 50%?

A) 0.53 B) 5.3 C) 0.6 D) 0.047

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

26

Which of the following components can be used as a rotating amplifier in a control system?
1. An amplidyne
2. A separately excited dc generator
3. A self-excited dc generator
4. A synchro
Select the correct answer using the options given below:

A) 3 and 4 B) 1 and 2 C) 1, 2 and 3 D) 1, 2, 3 and 4

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

27

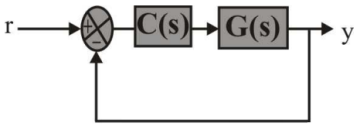

For the following feedback system $$G\left( s \right) = \frac{1}{{\left( {s + 1} \right)\left( {s + 2} \right)}}.$$ The 2% settling time of the step response is required to be less than 2 seconds.
Which one of the following compensators C(s) achieves this?
Control Systems mcq question image

A) $$3\left( {\frac{1}{{s + 5}}} \right)$$ B) $$5\left( {\frac{{0.03}}{s} + 1} \right)$$ C) $$2\left( {s + 4} \right)$$ D) $$4\left( {\frac{{s + 8}}{{s + 3}}} \right)$$

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

28

The main purpose of feedback in a control system is

A) To have a reduced time constant B) To make the system more stable C) To decrease the response error D) Sensitivity of the system is increased

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

29

In control systems, we have
1. Nyquist Criterion
2. Bode plot
3. Root locus plot
4. RH-Criterion
Which of the above are in time domain?

A) 1 and 2 only B) 2 and 4 only C) 1 and 3 only D) 3 and 4 only

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

30

In a feedback control system, phase margin (PM) is:
1. Directly proportional to ξ
2. Inversely proportional to ξ
3. Independent of ξ
4. Zero when ξ = 0
Which of the above statements are correct?

A) 1 and 2 B) 2 and 3 C) 3 and 4 D) 1 and 4

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board
