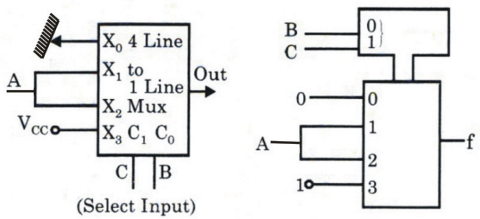

A 4-line-to-1-line multiplexer shown in figure-I (the same as per IEEE convention is shown in figure-II) is fed with three logic inputs A, B and C as shown. The output of the multiplexer will be
Digital Electronics mcq question image

A) ∑m(0, 1, 2, 4) B) ∑m(0, 3, 5, 7) C) ∑m(3, 5, 6, 7) D) ∑m(1, 2, 5, 6)

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

The number FF in hexadecimal system has equivalence in decimal system to

A) 245 B) 255 C) 265 D) 275

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

Negative NOR (a NOR in the negative positive logic system) becomes a Positive

A) NAND B) NOR C) OR D) None of these

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

Which of the following counter can be used to divide the clock frequency of a microprocessor by 5?

A) 3 bit counter B) 5 bit counter C) mod 3 counter D) mod 5 counter

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

The Boolean equation $${\text{X}} = \left[ {\left( {{\text{A}} + \overline {\text{B}} } \right)\left( {{\text{B}} + {\text{C}}} \right)} \right]{\text{B}}$$ can be simplified to

A) $${\text{X}} = \overline {\text{A}} {\text{B}}$$ B) $${\text{X}} = {\text{A}}\overline {\text{B}} $$ C) $${\text{X}} = {\text{AB}}$$ D) $${\text{X}} = \overline {\text{A}} \overline {\text{B}} $$

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

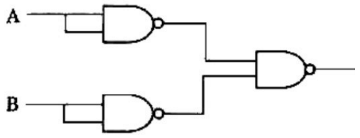

The output equivalent circuit of following circuit is
Digital Electronics mcq question image

A) INVERTER B) AND C) OR D) NOR

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

The Boolean functions can be expressed in canonical SOP (sum of products) and POS (Product of sums) form. For the function, $${\text{Y}} = {\text{A}} + \overline {\text{B}} {\text{C,}}$$ which are such two forms

A) Y = Σ(1, 2, 6, 7) and Y = Π(0, 2, 4) B) Y = Σ(1, 4, 5, 6, 7) and Y = Π(0, 2, 3) C) Y = Σ(1, 2, 5, 6, 7) and Y = Π(0, 2, 3) D) Y = Σ(1, 2, 4, 5, 6, 7) and Y = Π(0, 2, 3)

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

The sum (S) of A and B in a half Adder can be implemented by using K NAND gates. The value of K is

A) 3 B) 4 C) 5 D) None of these

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

A mealy state machine's output depends on

A) State and outputs B) Inputs C) State D) State and inputs

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

The outputs Q and $$\overline {\text{Q}} $$ of master slave S-R flip-flop are connected to its R and S inputs respectively. The output Q when clock pulses are applied will be

A) Permanently 0 B) Permanently 1 C) Fixed 0 or 1 D) Complementing with every clock pulse

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board
