The current in the series R-L circuit at a time t = 0+ is?
Discuss
Answer & Solution
Answer: Option D
No explanation is given for this question. Let's Discuss on Board
12

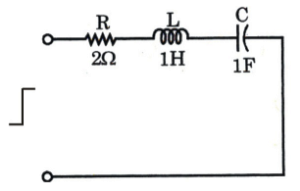

A step voltage is applied to the circuit shown below. What is the transient current response of the circuit?
Network Theory and Analysis mcq question image
Discuss
Answer & Solution
Answer: Option D
No explanation is given for this question. Let's Discuss on Board
13

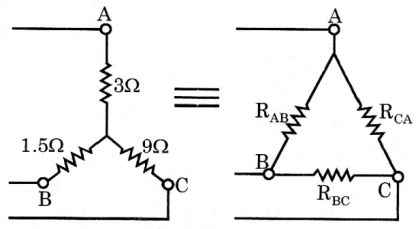

For the equivalent figure circuit shown in the given figure, the values of RAB and RBC are respectively
Network Theory and Analysis mcq question image
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
14
A parallel RLC circuit has ω0 = 108 and Q = 20. Given C = 20 pF, the value of R is
Discuss
Answer & Solution
Answer: Option B
No explanation is given for this question. Let's Discuss on Board
15

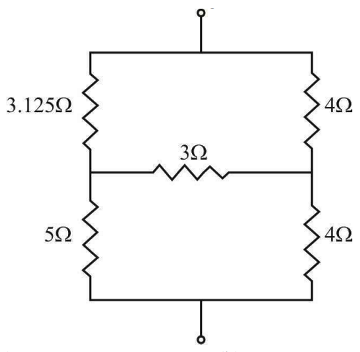

The Req for the following network is . . . . . . . .
Network Theory and Analysis mcq question image
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
16
Superposition theorem is not applicable to a network having which type of element?
Discuss
Answer & Solution
Answer: Option A
No explanation is given for this question. Let's Discuss on Board
17
A graph is said to be connected graph if-
Discuss
Answer & Solution
Answer: Option C
No explanation is given for this question. Let's Discuss on Board
18
A transfer function having open zero at right half plane is a/an
Discuss
Answer & Solution
Answer: Option B
No explanation is given for this question. Let's Discuss on Board
19
The power in a series RLC circuit will be half of that at resonance when the magnitude of the current is equal to
Discuss
Answer & Solution
Answer: Option C
No explanation is given for this question. Let's Discuss on Board
20
In the passband of a symmetric lattice filter, the nature of XA and XB where XA and XB represent the reactance of the series arm and the diagonal arm of the lattice is of
Discuss
Answer & Solution
Answer: Option B
No explanation is given for this question. Let's Discuss on Board
