Theory Of Machine MCQ Questions & Answers

11

A point B on a rigid link AB moves with respect to A with angular velocity $$\omega $$ rad/s. The total acceleration of B with respect to A will be equal to

A) Vector sum of radial component and Coriolis component B) Vector sum of tangential component and Coriolis component C) Vector sum of radial component and tangential component D) Vector difference of radial component and tangential component

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

12

A shaft has an attached disc at the centre of its length. The disc has its centre of gravity located at a distance of 2 mm from the axis of the shaft. When the shaft is allowed to vibrate in its natural bow-shaped mode, it has a frequency of vibration of 10 rad/s. When the shaft is rotated at 300 r.p.m., it will whirl with a radius of

A) 2 mm B) 2.22 mm C) 2.50 mm D) 3.0 mm

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

13

The lead screw of a lathe with nut forms a

A) Rolling pair B) Sliding pair C) Screw pair D) Turning pair

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

14

The C.G. of a link in any mechanism would experience

A) No acceleration B) Linear acceleration C) Angular acceleration D) Both angular and linear accelerations

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

15

There are six gears A, B, C, D, E and F in a compound train. The numbers of teeth in the gears are 20, 60, 30, 80, 25 and 75 respectively. The ratio of angular speeds of the driven (F) to the driver (A) of the drive is

A) $$\frac{1}{{24}}$$ B) $$\frac{1}{8}$$ C) $$\frac{4}{{15}}$$ D) 12

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

16

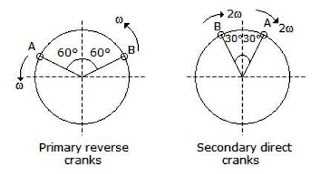

For a twin cylinder V-engine, the crank positions for primary reverse cranks and secondary direct cranks are shown in the below figure. The engine is a
Theory of Machine mcq question image

A) 30° V-engine B) 60° V-engine C) 120° V-engine D) 150° V-engine

Discuss

Answer & Solution

Answer: Option A

Solution:

17

In a rigid link OA, velocity of 'A' w.r.t. 'O' will be

A) Parallel to OA B) Perpendicular to OA C) At 45° to OA D) Along AO

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

18

When two pulleys are connected by means of a cross belt drive, then both the pulleys will rotate in _________ directions.

A) Same B) Opposite C) Perpendicular D) None of these

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

19

A rotary internal combustion engine has __________ cylinders.

A) Four B) Five C) Six D) Seven

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

20

A mechanism consisting of four links is called a __________ mechanism.

A) Simple B) Compound C) Binary D) None of these

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board
