11. A dc potentiometer is designed to measure up to about 2 V with a slide wire of 800 mm. A standard cell of emf 1.18 V obtains balance at 600 mm. A test cell is seen to obtain balance at 680 mm. The emf of the test cell is
12. Which one of the following is the best definition of accuracy?
13. A coil is tuned to resonance at 500 kHz with a resonating capacitor of 36 pF. At 250 kHz, the resonance is obtained with resonating capacitor of 160 pF. What is the self-capacitance of the coil?
14. A resistance strain gauge is cemented to a steel member, which is subjected to a strain of 2 × 10-6. If the original resistance is 100 Ω and change in resistance is 600 µΩ, the gauge factor will be
15. The moving coil in a dynamometer wattmeter is connected
16. The expected value of voltage across a resistor is 80 V. however, the measurement gives a value of 79 V. Then % error and relative accuracy are-
17. T = Ki is the torque equation of a
18. Resolution of an instrument is
19. The arrangement shown in the given figure represents an RC potentiometer for measuring ac voltage. What should be the value of C so that V0/Vin is independent of the frequency of the input signal?

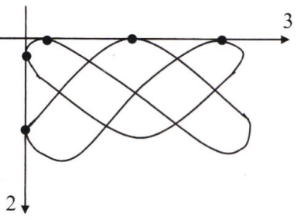

20. For the given Lissajous figure Find fy, if fx is 1200 Hz
Read More Section(Measurement and Instrumentation)
Each Section contains maximum 100 MCQs question on Measurement and Instrumentation. To get more questions visit other sections.
