Theory Of Machine MCQ Questions & Answers

A) $$\frac{{{\text{Length of the path of approach}}}}{{{\text{Circular pitch}}}}$$ B) $$\frac{{{\text{Length of the path of recess}}}}{{{\text{Circular pitch}}}}$$ C) $$\frac{{{\text{Length of the arc of contact}}}}{{{\text{Circular pitch}}}}$$ D) $$\frac{{{\text{Length of the arc of approach}}}}{{\cos \varphi }}$$

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

The danger of breakage and vibration is maximum

A) Below the critical speed B) Near the critical speed C) Above the critical speed D) None of these

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

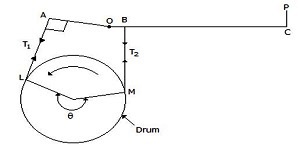

In a differential band brake as shown in the below figure, the drum rotates anticlockwise and the greater tension T₁ acts at A and smaller tension T₂ at B. Length OA is greater than length OB. In order to apply the brake, the force P at C should
Theory of Machine mcq question image

A) Be zero B) Act in upward direction C) Act in downward direction D) None of the above

Discuss

Answer & Solution

Answer: Option C

Solution:

The cam follower generally used in aircraft engines is

A) Knife edge follower B) Flat faced follower C) Spherical faced follower D) Roller follower

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

An involute pinion and gear are in mesh. If both have the same size of addendum, then there will be an interference between the

A) Tip of the gear tooth and flank of pinion B) Tip of the pinion and flank of gear C) Flanks of both gear and pinion D) Tip of both gear and pinion

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

A kinematic chain requires at least

A) 2 links and 3 turning pairs B) 3 links and 4 turning pairs C) 4 links and 4 turning pairs D) 5 links and 4 turning pairs

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

In a four stroke I.C. engine, the turning moment during the compression stroke is

A) Positive throughout B) Negative throughout C) Positive during major portion of the stroke D) Negative during major portion of the stroke

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

Typewriter constitutes

A) Machine B) Structure C) Mechanism D) Inversion

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

The minimum force required to slide a body of weight W on a rough horizontal plane is

A) W sinθ B) W cosθ C) W tanθ D) W cosecθ

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

1 2 3 4 5 6 7 8 9 10
