The Wien bridge oscillator is

A) a free running oscillator B) a square wave generator C) a stable sine wave generator D) also called cosine oscillator

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

62

In a CMOS CS amplifier, the active load is obtained by connecting a

A) p channel current mirror circuit B) n channel transistor C) p channel transistor D) BJT current mirror

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

63

Match List-I with List-II and select the correct answer using the options given below the lists:

List-I (Oscillator)	List-II (Characteristics Features)
a. Wien Bridge	1. RF oscillator two inductance and one capacitance on the reactance network.
b. Colpitts	2. LC oscillator for radio frequency : three capacitances and one inductance in the reactance network.
c. Hartley	3. RC oscillator for audio frequency applications.
d. Clapp	4. RF oscillator : two capacitances and one inductance as the reactance network.

A) a-2, b-1, c-4, d-3 B) a-2, b-4, c-1, d-3 C) a-3, b-4, c-1, d-2 D) a-3, b-1, c-4, d-2

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

64

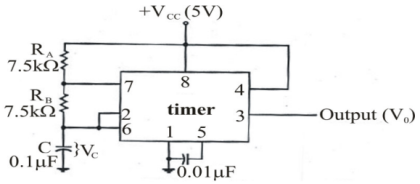

Calculate the frequency of following circuit
Analog Electronics mcq question image

A) f = 1270 Hz B) f = 1905 Hz C) f = 635 Hz D) f = 325 Hz

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

65

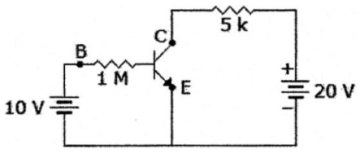

In figure what is the base current if V_BE = 0.7 V?
Analog Electronics mcq question image

A) 10 µA B) 10 mA C) 4 mA D) 9.3 µA

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

66

What will be the period and frequency of oscillation for an astable multivibrator, given the following specifications?
R₁ = 1 kΩ R₂ = 5.6 kΩ C₁ = 0.01 µF C₂ = 0.03 µF

A) 12.5 ms, 80 Hz B) 1.25 µs, 800 kHz C) 1.25 ms, 800 Hz D) 0.125 ms, 8 kHz

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

67

The percentage regulation of Half-wave rectifier is

A) $$\frac{{{{\text{V}}_{{\text{no load}}}} - {{\text{V}}_{{\text{load}}}}}}{{{{\text{V}}_{{\text{no load}}}}}} \times 100\% $$ B) $$\frac{{{{\text{V}}_{{\text{load}}}} - {{\text{V}}_{{\text{no load}}}}}}{{{{\text{V}}_{{\text{load}}}}}} \times 100\% $$ C) $$\frac{{{{\text{V}}_{{\text{no load}}}} - {{\text{V}}_{{\text{load}}}}}}{{{{\text{V}}_{{\text{load}}}}}} \times 100\% $$ D) $$\frac{{{{\text{V}}_{{\text{load}}}} - {{\text{V}}_{{\text{no load}}}}}}{{{{\text{V}}_{{\text{no load}}}}}} \times 100\% $$

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

68

Which one of the following statements is correct?
The rise time of an amplifier is

A) Directly proportional to the upper 3-dB frequency B) Inversely proportional to the upper 3-dB frequency C) Directly proportional to the lower 3-dB frequency D) Inversely proportional to the lower 3-dB frequency

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

69

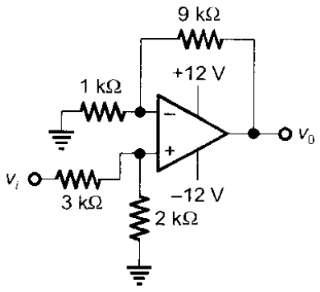

Assume the op-amp in the circuit of figure to be ideal. The value of the output voltage v₀ is
Analog Electronics mcq question image

A) 3.2 v_i B) 4 v_i C) 9 v_i D) 10 v_i

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

70

An amplifier circuit has an overall current gain of -100 and an input resistance of 10 kΩ with a load resistance of 1 kΩ. The overall voltage gain of the amplifier is

A) 5 dB B) 10 dB C) 20 dB D) 40 dB

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board
