In one of the following circuits, negative feedback does not operate for a negative input. Which one is it? The op-amps are running from ±15 V supplies.

A)

B)

C)

D)

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

52

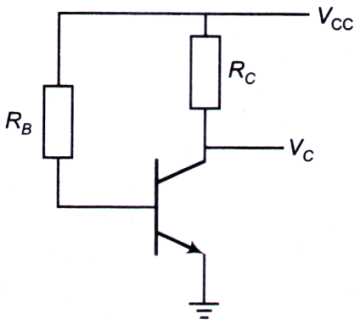

Calculate the collector voltage (V_C) of the transistor circuit as shown in the figure.
[ Given, α = 0.96, l_CBO = 20 μA, V_BE = 0.3 V, R_B = 100 k$$\Omega $$, V_CC = +10 V and R_C = 2.2 k$$\Omega $$ ]
Electronics mcq question image

A) 3.78 V B) 3.82 V C) 4.72 V D) 9.7 V

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

53

In order to obtain a solution of the differential equation $$\frac{{{d^2}V}}{{d{t^2}}} - 2\frac{{dV}}{{dt}} + {V_1} = 0,$$ involving voltages V(t) and V₁, an operational amplifier (op-amp) circuit would require at least

A) two op-amp integrators and one op-amp adder B) two op-amp differentiators and one op-amp adder C) one op-amp integrator and one op-amp adder D) one op-amp integrator and one op-amp differentiator and one op-amp adder

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

54

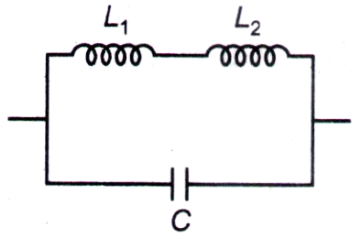

The tank circuit of a Hartley oscillator is shown in the figure. If M is the mutual inductance between the inductors, the oscillation frequency is
Electronics mcq question image

A) $$\frac{1}{{2\pi \sqrt {\left( {{L_1} + {L_2} + 2M} \right)C} }}$$ B) $$\frac{1}{{2\pi \sqrt {\left( {{L_1} + {L_2} - 2M} \right)C} }}$$ C) $$\frac{1}{{2\pi \sqrt {\left( {{L_1} + {L_2} + M} \right)C} }}$$ D) $$\frac{1}{{2\pi \sqrt {\left( {{L_1} + {L_2} - M} \right)C} }}$$

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

55

An avalanche effect is observed in a diode when

A) the forward voltage is less than the breakdown voltage B) the forward voltage exceeds the breakdown voltage C) the reverse voltage exceeds the breakdown voltage D) the diode is heavily doped and forward biased

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

56

A piece of semiconducting material is introduced into a circuit. If the temperature of the material is raised, the circuit current will

A) increase B) remain the same C) decrease D) cease to flow

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

57

The voltage resolution of a 12-bit Digital to Analog Converter (DAC), whose output varies from -10 V to +10 V, is approximately

A) 1 mV B) 5 mV C) 20 mV D) 100 mV

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

58

For an intrinsic semiconductor, $$m_e^ * $$ and $$m_h^ * $$ are respectively, the effective masses of electrons and holes near the corresponding band edges. At a finite temperature, the position of the Fermi level

A) depends on $$m_e^ * $$ but not on $$m_h^ * $$ B) depends on $$m_h^ * $$ but not on $$m_e^ * $$ C) depends on both $$m_e^ * $$ and $$m_h^ * $$ D) depends neither on $$m_e^ * $$ nor on $$m_h^ * $$

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

59

Which of the following statements is correct for a common emitter amplifier circuit?

A) The output is taken from the emitter B) There is 180° phase shift between input and output voltages C) There is no phase shift between input and output voltages D) Both p-n junctions are forward biased

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

60

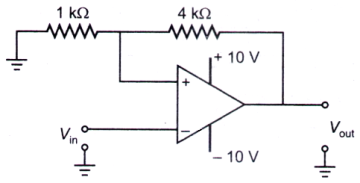

Consider the following circuit:
Electronics mcq question image
