Electronic Devices And Circuits MCQ Questions & Answers

51

What is one of the primary advantages of FET compared to BJT?

A) Low input impedance B) Low output impedance C) High input impedance D) High output impedance E) Low value of current

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

52

Why is silicon dioxide (SiO₂) layer used in ICs?

A) To protect the surface of the chip from external contaminants and to allow for selective formation of the n and p regions by diffusion B) because it facilitates the penetration of the desired impurity by diffusion C) To control the concentration of the diffused impurities by diffusion D) Because of its high heat conduction

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

53

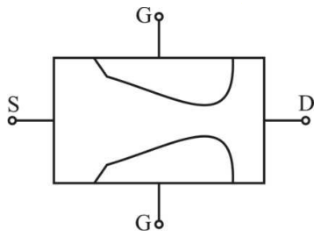

In a biased JFET, the shape of the channel is as shown in the given figure. because
Electronic Devices and Circuits mcq question image

A) it is the property of the material used B) the drain end is more reverse biased than source end C) the drain end is more forward biased than source end D) the impurity profile varies with the distance from source

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

54

Practically, in order to create an electron-hole pair in a P-N junction diode, the energy of the incident photon should be

A) Less than the band gap B) Equal to the band gap C) Greater than the band gap D) None of the above

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

55

In order to generate electron-hole pairs, the maximum wavelength of radiation for Silicon (Band gap = 1.1 eV) is

A) 1.88 µm B) 1.68 µm C) 1.13 µm D) 1.54 µm

Discuss

Answer & Solution

Answer: Option C

No explanation is given for this question. Let's Discuss on Board

56

The diffusion potential across P-N junction

A) Decreases with increasing doping concentration B) Increases with decreasing band gap C) Does not depend on doping concentrations D) Increases with increase in doping concentration

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

57

The quantum efficiency η for the photo detector is
Where,
I_ph = Average photocurrent
P_e = Average incident optical power
hc/λ = Incident photon energy

A) $$\frac{{{{\text{I}}_{{\text{ph}}}}}}{{{{\text{P}}_0}}}$$ B) $$\frac{{{{\text{I}}_{{\text{ph}}}}{\text{/e}}}}{{{{\text{P}}_{\text{0}}}{\text{/(hc/}}\lambda {\text{)}}}}$$ C) $$\frac{{{{\text{P}}_{\text{0}}}}}{{{{\text{I}}_{{\text{ph}}}}}}$$ D) $$\frac{{{{\text{P}}_{\text{0}}}{\text{/(hc/}}\lambda {\text{)}}}}{{{{\text{I}}_{{\text{ph}}}}{\text{/e}}}}$$

Discuss

Answer & Solution

Answer: Option B

No explanation is given for this question. Let's Discuss on Board

58

Which statement is correct for Schottky diode?

A) Current Voltage characteristics is totally different than that of a p-n junction diode B) The current is controlled by the diffusion of minority carriers C) The current results from the flow of minority carriers D) The storage time t_s is almost zero

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board

59

Assuming that the electron mobility in intrinsic silicon is 1500 cm²/V-Sec at room temperature (T = 300 K and the corresponding 'volt equivalent of temperature' V_T = 25.9 mV, what is the approximate value of the electron diffusion constant?

A) 40 cm²/s B) 4 cm²/s C) 400 cm²/s D) 4000 cm²/s

Discuss

Answer & Solution

Answer: Option A

No explanation is given for this question. Let's Discuss on Board

60

In a forward-biased p-n diode with N_A >> N_D, the product of dynamic diode resistance and diffusion capacitance C_D equals:

A) $$\tau _{\text{P}}^2$$ B) $$ - {\tau _{\text{P}}}$$ C) $$\tau _{\text{P}}^{ - 1}$$ D) $${\tau _{\text{P}}}$$

Discuss

Answer & Solution

Answer: Option D

No explanation is given for this question. Let's Discuss on Board
